Stainless Steel Test Finger Probe IEC 61032 Figure 58.5 | Precision Safety Testing Equipment for Access Protection Evaluation

Merknaam:	HJ
Modelnummer:	HT-U11
Moq:	1 Instellen
Prijs:	Negotiatable
Betalingsvoorwaarden:	T/T
Toeleveringsvermogen:	100 sets/maand

Gedetailleerde informatie

Productbeschrijving

Gedetailleerde informatie

Plaats van herkomst:

China

Certificering:

TUV、ITS、CSA、BV、SGS 、CNAS(cost additional)

De diameter van de vinger:

8,6 mm ± 0,1 mm

Tolerantie:

± 0,05 mm

Bedrijfstemperatuur:

0°40°C

Naleving:

IEC 61032, EN 61032, GB/T 16842

Verpakking Details:

Aluminium doos

Markeren:

Stainless steel test finger probe

IEC 61032 safety testing equipment

Precision access protection evaluator

Productbeschrijving

Stainless Steel Test Finger Probe IEC 61032 Figure 58.5 | Precision Safety Testing Equipment for Access Protection Evaluation

Product Introduction

When it comes to safety and compliance testing, precision is everything. The He Jin Stainless Steel Test Finger Probe (Figure 58.5) embodies reliability and durability for evaluating the protection of electrical enclosures and components against accidental human contact.

This test probe simulates a human finger to check whether live or hazardous parts of a device can be accessed under normal operating conditions. Constructed from high-grade stainless steel, it offers superior corrosion resistance, dimensional accuracy, and consistent testing performance — even under frequent industrial use.

Each He Jin probe is manufactured under strict quality control, ensuring compliance with IEC, EN, UL, and GB/T standards, making it a trusted tool for laboratories, certification bodies, and product quality inspection departments worldwide.

Product Features:

High-precision construction – Designed and machined according to IEC 61032 Figure 58.5 dimensions.
Durable stainless steel body – Provides superior corrosion resistance and long service life.
Human-simulation accuracy – Perfectly replicates the human test finger shape for realistic accessibility testing.
Ergonomic handle – Ensures comfort and ease of operation during repeated testing.
Compatible with multiple test standards – Supports IEC, EN, UL, and GB testing requirements.
Factory-direct manufacturing – Produced by He Jin, a professional OEM/ODM manufacturer with global export capability.
Customizable options – Available in different materials or probe configurations upon request.

International Reference Standards

Standard Code	Description
IEC 61032:1997	Protection of persons against access to hazardous parts – Test probes.
IEC 60529:2013	Degrees of protection provided by enclosures (IP Code).
EN 61032	European adaptation of IEC test probe standards.
UL 61032	US equivalent standard for accessibility testing tools.

Technical Specifications:

Parameter	Specification
Probe Type	Test Finger Probe, IEC 61032 Figure 58.5
Material	Stainless Steel (SUS304 or equivalent)
Finger Diameter	8.6 mm ± 0.1 mm
Finger length	80 mm ± 0.2 mm
Joint Diameter	9.5 mm ± 0.1 mm
Handle Length	100 mm
Total Length	Approx. 180mm
Tolerance	±0.05 mm
Surface Finish	Polished
Grip Material	Insulated Handle (Nylon or Bakelite)
Weight	Approx. 250 g
Operating Temperature	0–40°C
Storage Conditions	Dry, dust-free environment
Calibration	Traceable to ISO/IEC 17025 standard
Packaging	Foam-protected export carton
Compliance	IEC 61032, EN 61032, GB/T 16842

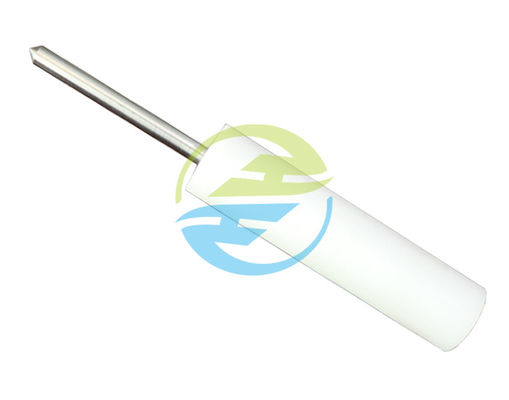

Product photos:

Stainless Steel Test Finger Probe IEC 61032 Figure 58.5 | Precision Safety Testing Equipment for Access Protection Evaluation 0
